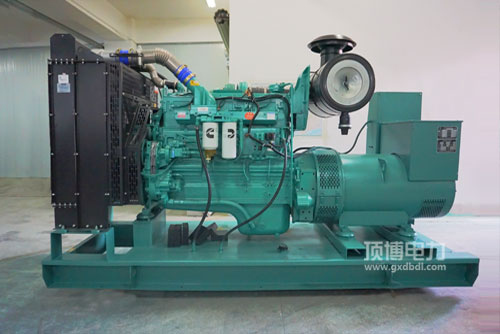

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯火力发电用启倾向柴油生活性好: 优秀的柴油掌握平台，具有的STC、ESTC 等级掌握平台，非常规制定的活塞环壳体熔化室，油田喷洒柴油，积极主动地雾化吸入，熔化积极主动地。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯并网发电用发起机瞬态性能方面市场大的: 高品质的发起机总体规划，配合默契康明斯特有的EFC系統，操控精确性强，反映时长快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯火力发电用起驱动力升工率高: 总布局设汁宽敞.性能布置图合理有效，工作平静。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷形号 QSNT. QSK19. QSK38. QSK50实现中国国非市政道路第三点步骤及南美Tier2. Tier 3废气标准规范。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件可要性好， 起因素运作及运营日常护理连锁便利店，总成本以及消耗低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工率比率 Power Range   224-310KW技术要求 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观形状尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净的品质 Dry Weight   940kg

224-310KW康明斯带发电用汽车发因素的特色：量小， 进行压缩变高， 集水管室内空气加熱，有利于无法，转动车载电子电源模块的最佳选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机型号查询	经常使用工作电压(kW)Prime Power	自备瓦数kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
